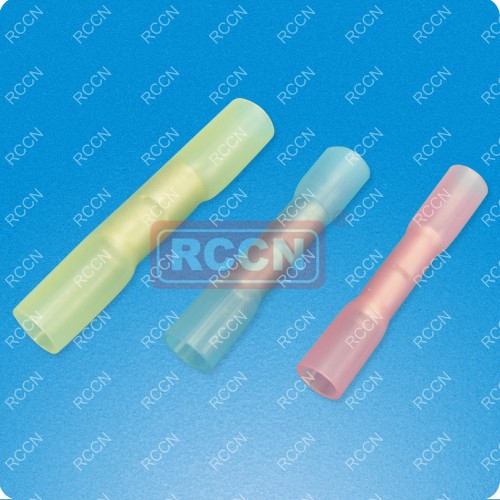

RCCN Butt Splice Heat Shrinkable
  |
|
Note:instal led by crimp tool YYT-1 |
Maximum pressure: 105 ℃ 600V insulating sheath material: Nylon
| Item No. | DIMENSION(mm) |
Joint material |
Conductor cross section |
COLOR | ||
| L | DΦ | dΦ | ||||
| BHS 1.25 | 35.5 | 3.2 | 1.7 |
Red copper |
22 – 16 A.W.G 0.5 – 1.5 mm² | Red |
| BHS 2 | 34.5 | 3.8 | 2.3 |
Red copper |
16 – 14 A.W.G 1.5 – 2.5 mm² | Blue |
| BHS5.5 | 42.0 | 5.3 | 3.4 |
Red copper |
14 – 10 A.W.G 4 – 6 mm² | Yellow |
