RCCN FN Flag Female Nylon Disconnects






Note:installed by crimp tool YYT-1
Material:copper insulated part:nylon



Insulated square：0.5～1.5mm2(AWG22～16) Max. cunrrent：lmax＝10A

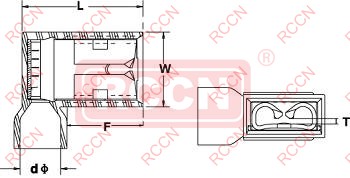

Item No. NEMA TAB
T×W		 DIMENSION COLOR
W F dφ L
FN1.25-250A 0.8×6.35 6.4 9.0 1.7 22 Red
Insulated square：1.5～2.5mm2(AWG16～14) Max. cunrrent：lmax＝15A

Item No. NEMA TAB
T×W		 DIMENSION COLOR
W F dφ L
FN2-250A 0.8×6.35 6.4 9.0 2.3 24 Blue
