RCCN SP PC Support Post
  |
| Material：UL approved NYLON66(natural)，fireproof 94V-2， good insulation, good aging resistant。 |
|
|
|
|
||

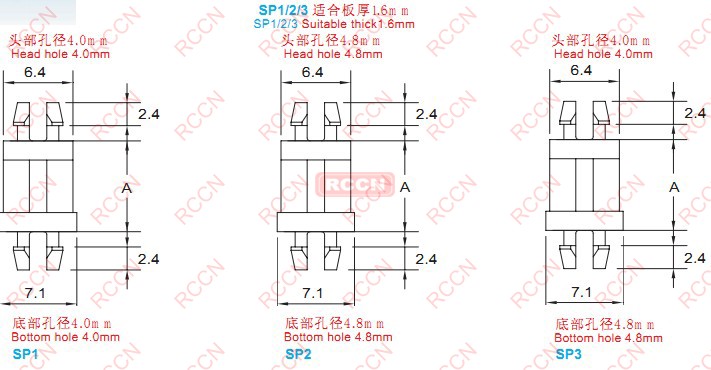

| 对应图Fig1 | 对应图Fig2 | 对应图Fig3 | “A”±0.4mm |
|
| SP1-4.8 | SP2-4.8 | SP3-4.8 | 4.8 | |
| SP1-6.4 | SP2-6.4 | SP3-6.4 | 6.4 | |
| SP1-7.9 | SP2-7.9 | SP3-7.9 | 7.9 | |
| SP1-9.5 | SP2-9.5 | SP3-9.5 | 9.5 | |
| SP1-11.1 | SP2-11.1 | – | 11.1 | |
| SP1-12.7 | SP2-12.7 | SP3-12.7 | 12.7 | |
| SP1-15.9 | – | SP3-15.9 | 15.9 | |
| SP1-19.1 | – | – | 19.1 | |
