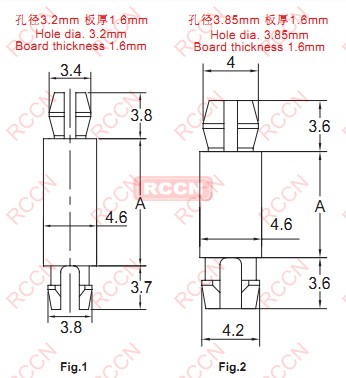

RCCN MCBP PC Support Post
Hole dia. 3.2mm Hole dia. 3.85mm
Board thickness 1.6mm Board thickness 1.6mm
  |
| Material：UL approved NYLON66(natural)，fireproof 94V-2， good insulation, good aging resistant |
|
|
|
|
|
| Fig1 | Fig2 | “A”±0.4mm |
|
| MCBP-3.2 | CBP-3.2 | 3.2 | |
| MCBP-4.8 | CBP-4.8 | 4.8 | |
| – | CBP-6.4 | 6.4 | |
| MCBP-7.9 | CBP-7.9 | 7.9 | |
| MCBP-9.5 | CBP-9.5 | 9.5 | |
| MCBP-11.1 | CBP-11.1 | 11.1 | |
| MCBP-12.7 | CBP-12.7 | 12.7 | |
| MCBP-14.3 | CBP-14.3 | 14.3 | |
| MCBP-15.9 | CBP-15.9 | 15.9 | |
| MCBP-17.5 | CBP-17.5 | 17.5 | |
| MCBP-19.1 | CBP-19.1 | 19.1 | |
| – | CBP-20.6 | 20.6 | |
| – | CBP-22.2 | 22.2 | |
| MCBP-25.4 | CBP-25.4 | 25.4 | |
| MCBP-28.6 | CBP-28.6 | 28.6 | |
| MCBP-31.7 | CBP-31.7 | 31.7 | |
| MCBP-34.9 | CBP-34.9 | 34.9 | |
| – | CBP-38.1 | 38.1 | |
