RCCN KVSBI Sei Irrax Rubber Tubing
   |
| Material:PE complex substance Features:protect in high voltage Temperature:shrinking from 70℃，≤125℃full shrinking；operate temperature:-40℃-125℃ Color:black、yellow、green、red。 Delivery time:10 days-14 days |
|
|

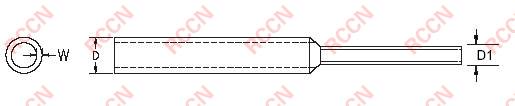

first range mm |
|
After shrinking | Suitable scope mm |
M |
||
| Inner D | W | Inner | Thickness | ||||
| 1KV | |||||||
| 1KVSBI-30 | 30 | 31.5±1.0 | 0.50±0.15 | ≤15 | 0.95±0.15 | 16-30 | 50 |
| 1KVSBI-35 | 35 | 36.5±1.5 | 0.55±0.15 | ≤18 | 1.00±0.15 | 18-35 | 50 |
| 1KVSBI-40 | 40 | 40.5±1.5 | 0.55±0.15 | ≤20 | 1.00±0.15 | 20-40 | 50 |
| 1KVSBI-45 | 45 | 45.5±1.5 | 0.55±0.15 | ≤23 | 1.00±0.15 | 23-45 | 25 |
| 1KVSBI-50 | 50 | 50.5±2.0 | 0.55±0.15 | ≤25 | 1.00±0.20 | 25-50 | 25 |
| 1KVSBI-60 | 60 | 60±3.0 | 0.60±0.15 | ≤30 | 1.30±0.20 | 30-60 | 25 |
| 1KVSBI-70 | 70 | 70±3.0 | 0.65±0.20 | ≤35 | 1.30±0.20 | 35-70 | 25 |
| 1KVSBI-80 | 80/100 | 80±3.0 | 0.65±0.20 | ≤40 | 1.46±0.20 | 40-80 | 25 |
| 1KVSBI-90 | 100 | 90±4.0 | 0.65±0.20 | ≤43 | 1.46±0.20 | 43-90 | 25 |
| 1KVSBI-100 | 100/120 | 100±4.0 | 0.65±0.20 | ≤50 | 1.46±0.20 | 50-100 | 25 |
| 1KVSBI-120 | 150 | 120±4.0 | 0.65±0.20 | ≤60 | 1.46±0.20 | 60-120 | 15 |
| 1KVSBI-150 | 180 | 150±4.0 | 0.65±0.20 | ≤75 | 1.46±0.20 | 75-150 | 15 |
| 1KVSBI-180 | 200 | 180±4.0 | 0.65±0.20 | ≤90 | 1.46±0.20 | 90-180 | 15 |
| 10KV | |||||||
| 10KVSBI-15/6 | 15/12 | 15±0.8 | 1.0±0.2 | ≤6 | 2.5±0.2 | 25 | 6-15 |
| 10KVSBI-20/8 | 20/15 | 20±0.8 | 1.0±0.2 | ≤8 | 2.5±0.2 | 25 | 8-20 |
| 10KVSBI-25/10 | 25/18 | 25±0.8 | 1.0±0.2 | ≤10 | 2.5±0.2 | 25 | 10-25 |
| 10KVSBI-30/12 | 30/20 | 30±0.8 | 1.0±0.2 | ≤12 | 2.5±0.2 | 25 | 12-30 |
| 10KVSBI-40/16 | 40/30 | 40±0.8 | 1.2±0.2 | ≤16 | 2.8±0.3 | 25 | 16-40 |
| 10KVSBI-50/20 | 50/35 | 50±2.0 | 1.2±0.2 | ≤20 | 2.8±0.3 | 25 | 20-50 |
| 10KVSBI-60/24 | 60/45 | 60±3.0 | 1.2±0.2 | ≤24 | 2.8±0.3 | 25 | 24-60 |
| 10KVSBI-70/28 | 70/50 | 70±3.0 | 1.2±0.3 | ≤28 | 2.8±0.3 | 25 | 28-70 |
| 10KVSBI-80/32 | 80/55 | 80±3.0 | 1.2±0.3 | ≤32 | 2.8±0.3 | 25 | 32-80 |
| 10KVSBI-100/40 | 100/75 | 100±4.0 | 1.2±0.3 | ≤40 | 2.8±0.3 | 25 | 40-100 |
| 10KVSBI-120/48 | 120/85 | 120±4.0 | 1.2±0.3 | ≤48 | 2.8±0.3 | 25 | 48-120 |
| 10KVSBI-150/60 | 150/105 | 150±4.0 | 1.2±0.3 | ≤60 | 2.8±0.3 | 25 | 60-150 |
| 10KVSBI-180/72 | 180/120 | 180±5.0 | 1.2±0.3 | ≤72 | 2.8±0.3 | 25 | 72-180 |
| 30KV | |||||||
| 30KVSBI-30/15 | 30 | 30±1.0 | 1.9±0.5 | ≤15 | 4.0±0.3 | 15 | 15-30 |
| 30KVSBI-35/18 | 30/40 | 35±1.0 | 1.9±0.5 | ≤18 | 4.0±0.3 | 15 | 18-35 |
| 30KVSBI-40/20 | 40 | 40±1.0 | 1.9±0.5 | ≤20 | 4.0±0.3 | 15 | 20-40 |
| 30KVSBI-50/25 | 50 | 50±2.0 | 1.9±0.5 | ≤25 | 4.0±0.3 | 15 | 25-50 |
| 30KVSBI-60/30 | 60 | 60±2.0 | 1.9±0.5 | ≤30 | 4.0±0.3 | 15 | 30-60 |
| 30KVSBI-70/35 | 70 | 70±2.0 | 1.9±0.5 | ≤35 | 4.0±0.3 | 15 | 35-70 |
| 30KVSBI-80/40 | 80/100 | 80±3.0 | 1.9±0.5 | ≤40 | 4.0±0.3 | 25 | 40-80 |
| 30KVSBI-100/50 | 100/120 | 100±4.0 | 1.9±0.5 | ≤50 | 4.0±0.3 | 25 | 50-100 |
| 30KVSBI-120/60 | 150 | 120±4.0 | 1.9±0.5 | ≤60 | 4.0±0.3 | 25 | 60-120 |
| 30KVSBI-150/75 | 180 | 150±4.0 | 1.9±0.5 | ≤75 | 4.0±0.3 | 25 | 75-150 |
