RCCN PE Black Polyethylene Corrugated Tubing
 |
| Material:PE (Polyethylene) Work Temperature:-30℃ to100℃,110℃ in short time Color:black,other color are available,come with MOQ Certificates: CE,ROHS,REACH. Characheristics:good luster of exterior,stronger machinism loading, perfect flexible Functions:insulated,protect cables and wires Loading ability:uneasy to change shape,reshape speedly without hurt body Where to use:Equipment,machines,electricity sets, and so on How to use:insert cables or wires to RCCN flexible conduit Remarks:the items with * are available in stock. special packing length come with MOQ work temperature tested according to RCCN factory test machines |

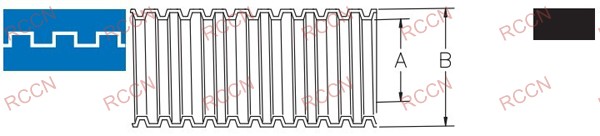

| Item No . | Sizes | I.D.A | O.D.B | PackingM |
| BG-07B | 1/4” | 6.5 | 10.0 | 100M |
| BG-10B | 5/16” | 10.0 | 13.0 | 100M |
| BG-12B | - | 12.0 | 15.8 | 100M |
| BG-15B | 3/8” | 14.3 | 18.5 | 100M |
| BG-17B | 1/2” | 17.0 | 21.2 | 100M |
| BG-23B | 3/4” | 23.0 | 28.5 | 50M |
| BG-29B | 1” | 29.0 | 34.5 | 50M |
| BG-36B | 1 1/4” | 36.0 | 42.5 | 50M |
| BG-48B | 2” | 48.0 | 54.5 | 25M |
| BG-11B | - | 11.0 | 14.0 | 100M |
| BG-20B | - | 20.0 | 25.0 | 50M |
| BG-25B | - | 25.0 | 32.0 | 50M |
