RCCN GH Nylon Cable Gland
 |

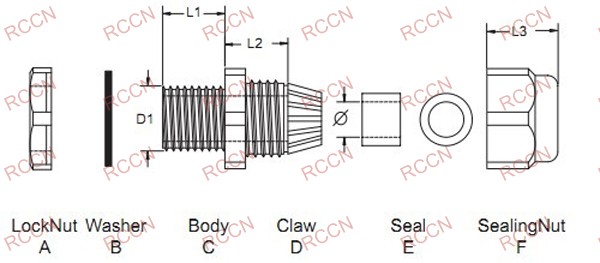

| Thread:NPT,G Material:A.C.D.F are made of NYLON66,B,E are made of silica gel rubber Certificate: CE, SGS,REACH。 Fireproof:UL94V-2。 Protect:IP68。 Colors:light gray,black Operate:-50°C to 200°C |
| Item No. | Thread | CableRangeΦ | ThreadO.D.D1 | PanelMountingHole | ThreadLengthL1 | ThreadLengthL2 | Spannersize
F |
Std.PkgPcs | |
| White | Black | ||||||||
| NPT1/4WH | NPT1/4BH | NPT1/4” | 3-6.5 | 13.616 | 13.6-13.9 | 8 | 22 | 18/16 | 100PCS |
| NPT3/8WH | NPT3/8BH | NPT3/8” | 4-8 | 17.055 | 17.1-17.5 | 13 | 26 | 22/19 | |
| NPT1/2WH | NPT1/2BH | NPT1/2” | 6-12 | 21.223 | 21.2-21.5 | 13 | 30 | 27/24 | |
| NPT3/4WH | NPT3/4BH | NPT3/4” | 13-18 | 26.568 | 26.5-26.6 | 15 | 37 | 33/33 | |
| NPT1WH | NPT1BH | NPT1” | 18-25 | 33.227 | 33.2-33.4 | 15 | 40 | 39/36 | |
| NPT1-1/4WH | NPT1-1/4BH | NPT11/4” | 22-32 | 41.984 | 41.9-42.1 | 15 | 48 | 54//50 | 20PCS |
| NPT1-1/2WH | NPT1-1/2BH | NPT11/2” | 32-38 | 48.053 | 48-48.5 | 20 | 49 | 63/61 | |
| NPT2WH | NPT2BH | NPT2” | 37-44 | 60.091 | 60-60.5 | 20 | 50 | 75/65 | |
| G1/4WH | G1/4BH | G1/4” | 3-6.5 | 13.2 | 13.2-13.4 | 8 | 22 | 18/16 | 100PCS |
| G3/8WH | G3/8BH | G3/8” | 4-8 | 16.7 | 16.5-17.1 | 15 | 26 | 22/19 | |
| G1/2WH | G1/2BH | G1/2” | 6-12 | 20.9 | 21.0-21.3 | 13 | 30 | 27/24 | |
| G3/4WH | G3/4BH | G3/4” | 13-18 | 26.4 | 26.5-26.6 | 15 | 37 | 33/33 | |
| G1WH | G1BH | G1” | 18-25 | 33.2 | 33.2-33.4 | 16 | 40 | 39/36 | |
| G1-1/4WH | G1-1/4BH | G11/4” | 22-32 | 41.9 | 41.9-42.1 | 16 | 48 | 54/50 | 20PCS |
| G1-1/2WH | G1-1/2BH | G11/2” | 32-38 | 47.8 | 47.8-48.0 | 20 | 49 | 63/61 | |
| G2WH | G2BH | G2” | 37-44 | 59.6 | 59.6-60.1 | 20 | 50 | 75/65 | |
