RCCN KW Mid-Way Wire Connector



Material：UL approved NYLON66,
fireproof 94V-2。
AWG&mm2
(square data)
refered sheet		 AWG 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32
mm2 33.4 20.8 13.2 8.4 5.3 3.3 2.1 1.3 0.83 0.52 0.33 0.21 0.13 0.08 0.05 0.03

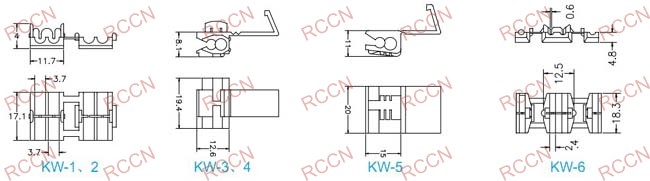

Item No. Wire Suitable Packing
KW-1
 18AWG-14AWG
100PCS
(1000PCS)
KW-2
 18AWG-14AWG
KW-3
 22AWG-18AWG
KW-4
 18AWG-14AWG
KW-5
 12AWG-10AWG
KW-6
 22AWG-20AWG
KW-6L
 18AWG-14AWG

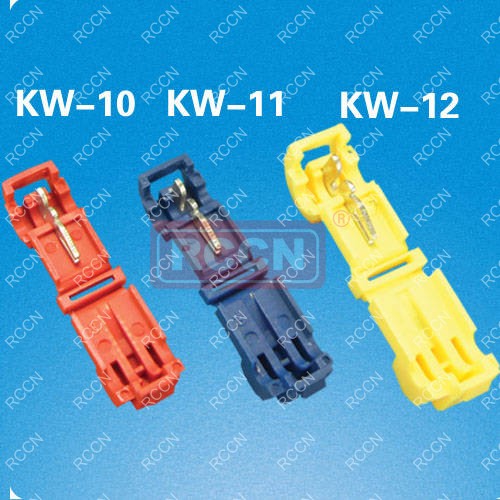

KW-10
 22AWG-18AWG
KW-11
 16AWG-14AWG
KW-12
 12AWG-10AWG
