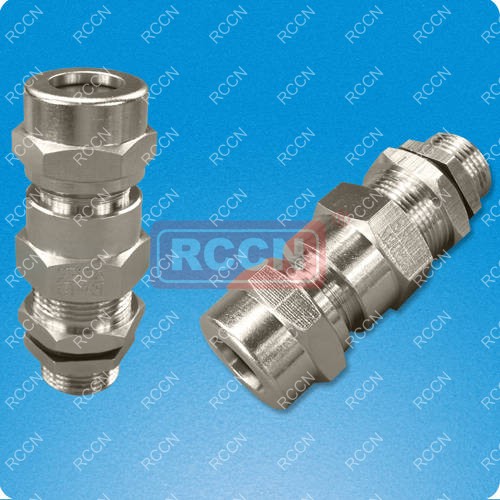

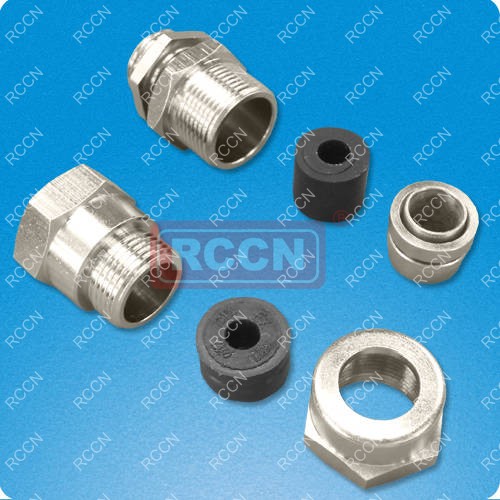

RCCN EX Brass Cable Gland
  |
| Thread:Metric),G Material:body is made of copper coated nickel,seal is made of NBR Certificates:CE,EX Operate temperature:-40°C to 100°C Protect:IP65。 Features:used in dangerouse location，fix un-armour cables,explosion-proof equipment，oil projects |
| Item No | Thread | ThreadO.D.
D1 |
PanelMounting
Hole |
ThreadLength
L1 |
CableRangeΦ A | CableRangeΦ B | Std.PkgPcs |
| EX-M16*1.5 | M16*1.5 | 16 | 16-16.3 | 12 | 8.6-11 | 6-14 | 20PCS |
| EX-M20*1.5 | M20*1.5 | 20 | 20-20.3 | 12 | 10-13 | 11.5-16 | |
| EX-M20*1.5 | M20*1.5 | 20 | 30-30.3 | 12 | 12-15 | 15-21 | |
| EX-M25*1.5 | M25*1.5 | 25 | 25-25.4 | 16 | 17-21 | 20-27.5 | |
| EX-M32*1.5 | M32*1.5 | 32 | 32-32.4 | 16 | 23-27 | 26-34 | |
| EX-M40*1.5 | M40*1.5 | 40 | 40-40.4 | 16 | 30-34 | 31-40 | |
| EX-M50*1.5 | M50*1.5 | 50 | 50-50.4 | 17 | 36-40 | 36-46 | 5PCS |
| EX-M50*1.5 | M50*1.5 | 50 | 50-50.4 | 17 | 41-45 | 43-53 | |
| EX-M63*1.5 | M63*1.5 | 63 | 63-63.4 | 17 | 49-53 | 48-59 | |
| EX-M63*1.5 | M63*1.5 | 63 | 63-63.4 | 17 | 55-59 | 58-66 | |
| EX-M75*2.0 | M75*2.0 | 75 | 75-75.4 | 19 | 59-63 | 61-71 | |
| EX-M75*2.0 | M75*2.0 | 75 | 75-75.4 | 19 | 66-70 | 65-79 | |
| EX-M100*2.0 | M100*2.0 | 100 | 100-100.4 | 19 | 70-86 | 76-93 | |
| EX-G1/2 | G1/2” | 21.3 | 21.0-21.3 | 12 | 8.6-11 | 6-14 | 20PCS |
| EX-G3/4 | G3/4” | 26.6 | 26.5-26.6 | 12 | 10-13 | 11.5-16 | |
| EX-G3/4 | G3/4” | 26.6 | 26.5-26.6 | 12 | 12-15 | 15-21 | |
| EX-G1 | G1” | 33.4 | 33.2-33.4 | 16 | 17-21 | 20-27.5 | 5PCS |
| EX-G1-1/4 | G1 1/4” | 42.1 | 41.9-42.1 | 16 | 23-27 | 26-34 | |
| EX-G1-1/2 | G1 1/2” | 47.8 | 47.8-48.0 | 16 | 30-34 | 31-40 | |
| EX-G2 | G2” | 59.6 | 59.6-60.1 | 17 | 36-40 | 36-46 | |
| EX-G2 | G2” | 59.6 | 59.6-60.1 | 17 | 41-45 | 43-53 |

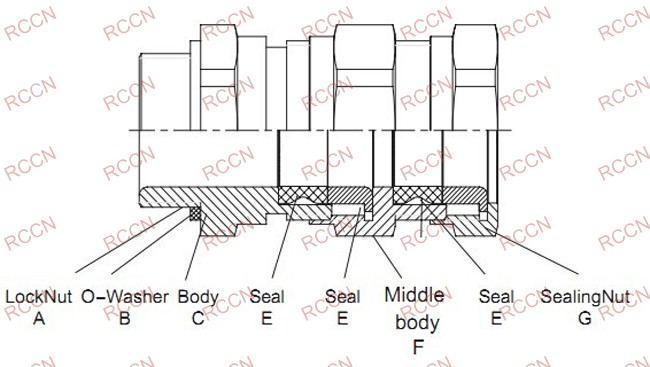

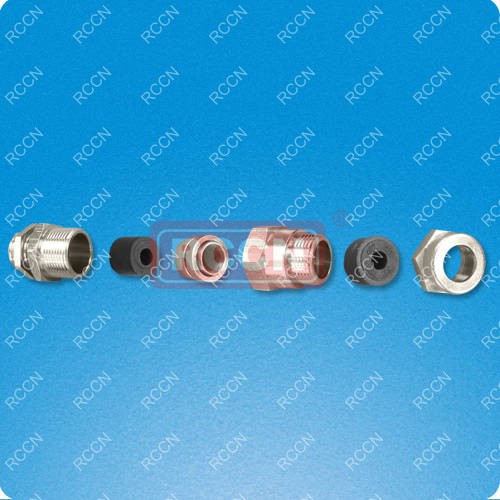

分解图
