Material: Nylon 66/94V-2
Color: Black.gray
Work temperature:-40°C to 105°C
Features: Suitable to different
conduits and cables
Item No. Suit to
RCCN
conduit
item no

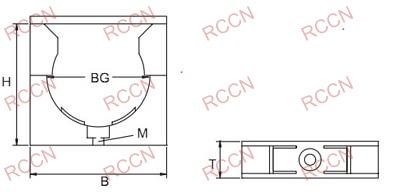

BG		 Width
B		 Height
H		 thickness
T		 thread hole
M		 Std.Pkg.
pcs
Black Gray
BGS-07B BGS-07G BG-07 30 23 12.5 4 100
BGS-10B BGS-10G BG-10 30 23 12.5 4 100
BGS-12B BGS-12G BG-12 30 23 12.5 4 100
BGS-15B BGS-15G BG-15 35 30 15.0 5 50
BGS-17B BGS-17G BG-17 35 30 15.0 5 50
BGS-23B BGS-23G BG-23 42 38 16.0 6 25
BGS-29B BGS-29G BG-29 51 43 16.0 6 25
BGS-36B BGS-36G BG-36 61 51 16.0 6 10
BGS-48B BGS-48G BG-48 74 64 19.0 6 10
